Animation and Time Lapse Motor

The Revolution Model 121 is a "generic" 1-to-1 time lapse and single-frame animation motor that you adapt to your camera.

As long as it has a single-frame advance knob, or inching shaft, this model can probably be adapted to it. Many cameras (such as the Michell 16mm and 35mm) have an output shaft specifically designed for a single-frame motor. If your camera has a 2:1 shaft (two exposures for every 1 rotation), we can supply it for 2-to-1 operation as well.

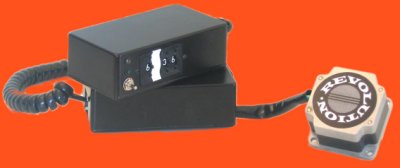

The motor can be a size Nema 23 (shown) or the smaller Nema 17. The cable length to motor can be a few inches, or as long as many feett.

Motor

A short cord and 6' long curly cord to connect the control box and the driver box are included. Even longer cords are available as well.

Here's the Revolution Operating Manal PDF.

Time Lapse features

  • Exact intervals from 1 second to 9 hours can be set precisely on the digital thumbwheels
  • Crystal-controlled interval and shutter speeds
  • Shutter speeds of 1/8, 1/4, 3/8, 1/2 sec and long exposures up to 4 minutes.
  • Change the shutter speed or interval while running!  That's right, if the sun is going down, and you want a longer exposure, you can change it without stopping and re-starting filming.
  • Presets!  Store filming settings in permanent memory.
  • Delay-before-filming mode, up to 24 hours.

Specs

  • Power input: Standard 4-pin XLR jack
  • Voltage: 12-24 volts, about 0.4 amp.
  • Weight, motor and motor box: 2.25 lbs
  • Weight, control box: 8 oz

Price: $995.00

Below are the dimensions in inches for the NEMA 23 size motor. It has a 1/4" shaft.
NEMA

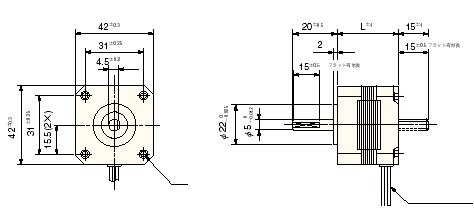

It can also be supplied with a smaller NEMA 17 motor. The NEMA 17 dimensions below are in mm. Single-shaft and dual-shaft variants are available in both sizes.

If you already have a camera with a digital motor attached, or an optical printer, the driver box can be hooked up that motor as well.

NEMA 17
